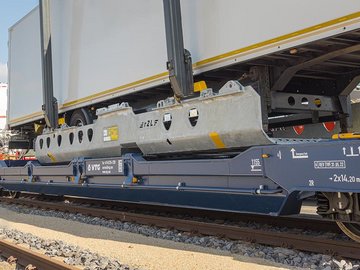

- Excellent for mega trailer transport.
- Generous dimension and open construction of the lower area of the wagon accommodates mega trailers without the necessity to reposition any major trailer components
- In combination with the r2L basket, non-craneable semi-trailers can also be loaded and transported by rail
Technical details wagon
| Tare weight | Approx. 35 t |
| Max. load | 100 t |
| Axle load | 22.5 t |
| Wheel diameter | 920 mm |
| Total length over buffers | 34,200 mm |
| Clearance: Outer wheelsets | 30,200 mm |
| Brake | DK-GP-A |
| Brake block category | K brake block |
| Min. drivable turning radius | 150 m (in block train) |
| Max. speed | 120 km/h |
| Loading length | Max. 2x 15,761 mm or 4x 7,820 mm - swap bodies (C782) |
| Loading length in feet | 100 ft |
| Loading height above top of rail, unloaded | 270 mm for trailer 1,155 mm for swap bodies and containers |
| Pocket width | 2,700 mm |
| Loading width | 2,600 mm for Container |
| Ferry boat capability | 1°30' |
Technical details r2L basket
| Tare weight | 4.3 t |
| Max. payload (total weight trailer) | 36.0 t |
| Length x Inner Width x Outer Width x Height | 7.800 x 2.630 x 2.860 x 910 mm |
